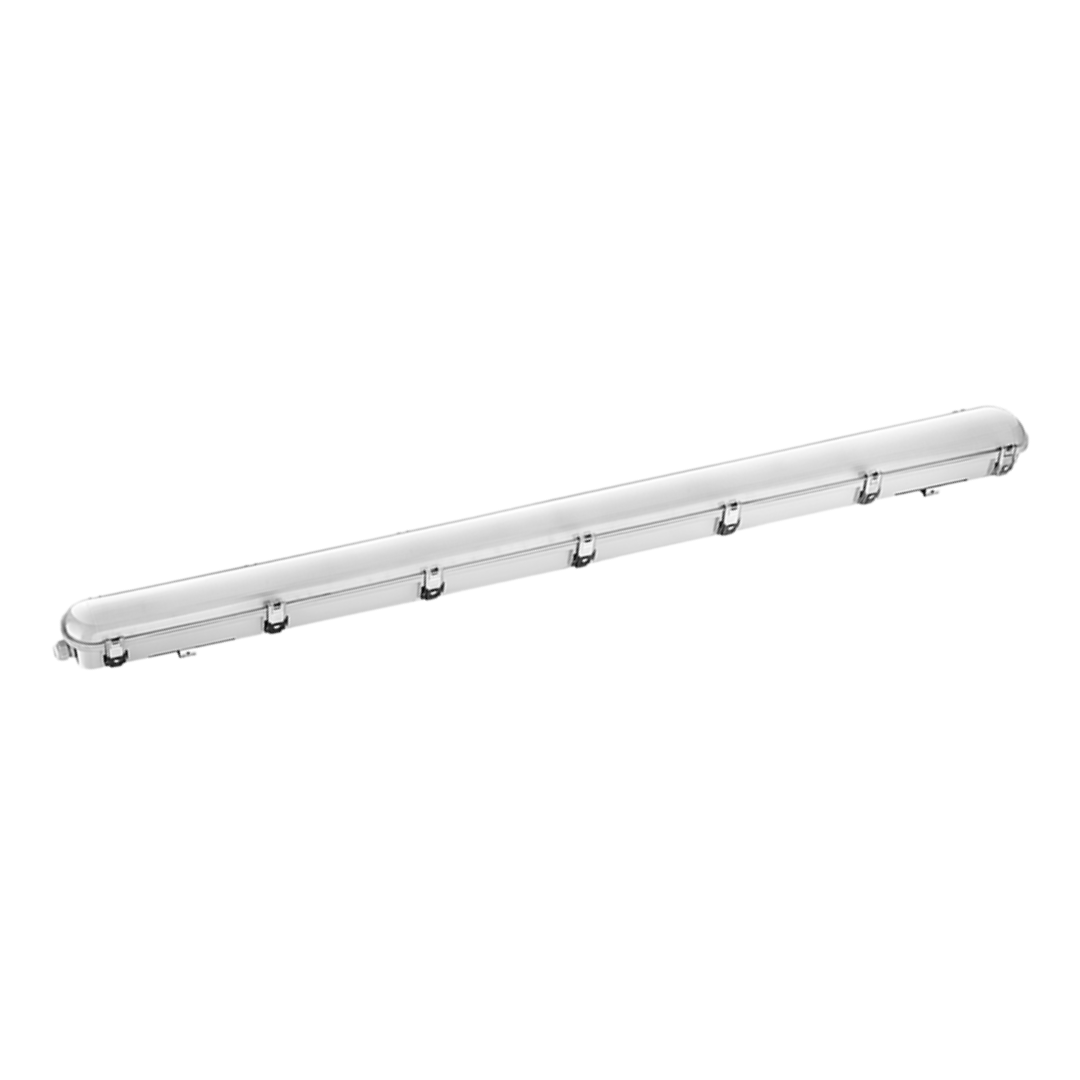

TriProof
Damp-proof luminaire
WITH IP65 AND IK10 PROTECTION CLASS
The TriProof damp-proof luminaire is used wherever high levels of robustness and durability are required – for example, in industrial environments, underground car parks, and warehouses and cold stores. It is available with optional sensor technology (daylight and/or motion detection), a DALI interface, food-grade certification or an integrated emergency lighting module. It also features a Power Dip Switch, which allows the output to be flexibly adjusted to the specific requirements across four levels. This enables lighting output to be tailored to needs and helps to optimise energy consumption.
Image source: Nadine Kernchen Fotografie
Available variants (besides the standard variant)
Microwave sensor
TriProof variant with sensor technology (daylight and/or motion detection)
DALI lighting control
TriProof version with DALI interface as a universal lighting management solution
Food certification
TriProof variant for the food sector (safe use in food production)
Emergency lighting
TriProof version with built-in emergency light module (500 lumens for up to 3 hours)
Protection class
Efficiency
Temperature
Integrated sensor and dimming function
The TriProof sensor luminaire with integrated microwave motion sensor, daylight sensor and LED ballast for automatic switching on and off or dimming is variably adjustable depending on movement and light intensity. With DIP switches (standard version), settings for detection range, stand-by dimming level, time delay and daylight threshold can be determined very precisely and easily. Thanks to its slim design, the driver with mini sensor is easily integrated into the compact luminaire.
Main features of the TriProof sensor:
Up to 12m detection range, light sensor, hold time adjustable between 5sec and 10min, maximum mounting height 6m as well as automatic dimming.
Special features
Robust IK10
Housing and diffuser made of polycarbonate with IK10 impact resistance, glow wire test 850°C
Glare-free light emission
Opal cover with > 82% light transmission
Damp- & dust-proof IP65
Water and dust-tight thanks to gel seal
Waterproof M20 cable entries
Extendable
Through-wiring with terminal strips for line installation.
