STAR Disc

STAR Disc
High Bay

HQL & HQI REPLACEMENT

STAR Disc LED high bay is the LED alternative for easy, fast and effective 1:1 replacement of the existing lighting systems with HQL and HQI lamps.




Lifetime

100.000 hours
L70B10 - 100.000 hours

Efficiency

Effizienz 150lm/W
Chip efficiency 167lm/W

Protection class

Schutzart ip66
Dust sealed  & waterproof

STAR Disc

STAR Disc high bay comes with Dekra certification, D- certification mark for fire-endangered business premises, DALI interface (optional) and many other additional functions. For applications in which standard coatings are not sufficient, we provide a wide variety of optional coatings.
 Please contact us if you are planning a lighting project.

10.500lm

W
70
  • 5.000K
  • IP66 IK08
  • CRI > 75
  • ø 400 * 174mm
  • 5,0kg
  •  -35°C  +55°C

16.500lm

W
110
  • 5.000K
  • IP66 IK08
  • CRI > 75
  • ø 400 * 174mm
  • 5,0kg
  • -35°C +55°C

22.500lm

W
150
  • 5.000K
  • IP66 IK08
  • CRI > 75
  • ø 400 * 174mm
  • 5,0kg
  • -35°C +55°C

27.000lm

W
180
  • 5.000K
  • IP66 IK08
  • CRI > 75
  • ø 400 * 174mm
  • 5,0kg
  • -35°C +55°C

33.500lm

W
230
  • 5.000K
  • IP66 IK08
  • CRI > 75
  • ø 400 * 174mm
  • 5,0kg
  • -35°C +55°C

40.000lm

W
280
  • 5.000K
  • IP66 IK08
  • CRI > 75
  • ø 400 * 174mm
  • 5,0kg
  • -35°C +55°C

Durable and low-maintenance

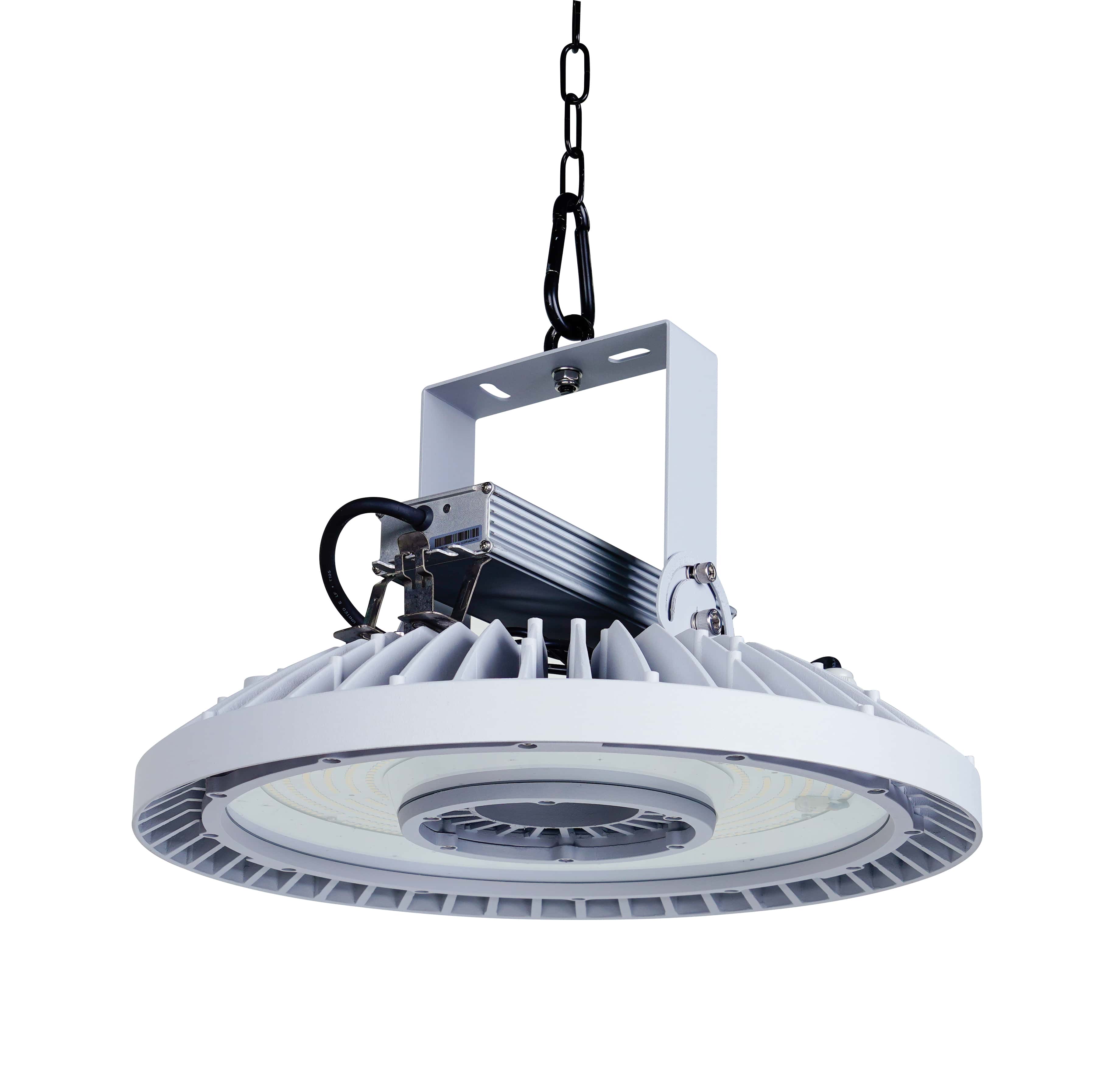

The STAR Disc fixture is easily mounted with just one chain suspention. The existing mounting and electricity installations in your facility can thus remain unchanged in most cases. STAR Disc comes with an external driver which can easily be replaced and helps significantly to reduce maintenance costs of  your entire lighting. Optionally, a DALI driver can be integrated as system requirement for light management including such features as dalight tracking or dimming.
Its open and large surface design provides an excellent thermo management and guaranteed lifetime of 100.000h (L70) even at ambient temperatures up to 55°C.



Wireless light management

Our cutting-edge light management system offers additional energy savings without the time-consuming and costly installation and complicated software development by using DALI and EnOcean interface.

Configuration

No programming skills needed.  Various room scenes can be easily created with a few simple mouse clicks.

Data management

Energy data collection and assesment including  maintenenance and status plans

Scalability

The system can be easily upgraded at any time

Functions

Daylight tracking, attendance recording, time management, troubleshooting and many more

Saves energy

Additional reduction of energy consumption up to 80%

Feature Media

NEW - Emergency Pack

Emergency lighting module for STAR Disc.
Power in the case of emergency 10W (1.300lm)
Emergency light time 180 minutes

Slide thumbnail

Extern verbautes Vorschaltgerät
für besseres Thermomanagement

Optional: mattierte
Glasabdeckung mit Blendschutz

Standardmäßig:
110° Abstrahlwinkel
gehärtete Glasabdeckung
oder 50° Abstrahlwinkel
PC Abdeckung

Silikonring

Leichtes Gehäuse aus
Magnesiumlegierung

LED Nichia Industriechip
167lm/W

_______________________

______________

______________

_________________

_________________

________________________

Beam angle

Abstrahlcharakteristik / Beam angle
