STAR Click & STAR Line Universal
LINEAR LIGHT
Whether a linear lighting system is already in place or a completely new one is being planned, whether as individual luminaires or in one piece - we have the right solution for you.
Picture credits: Libeco

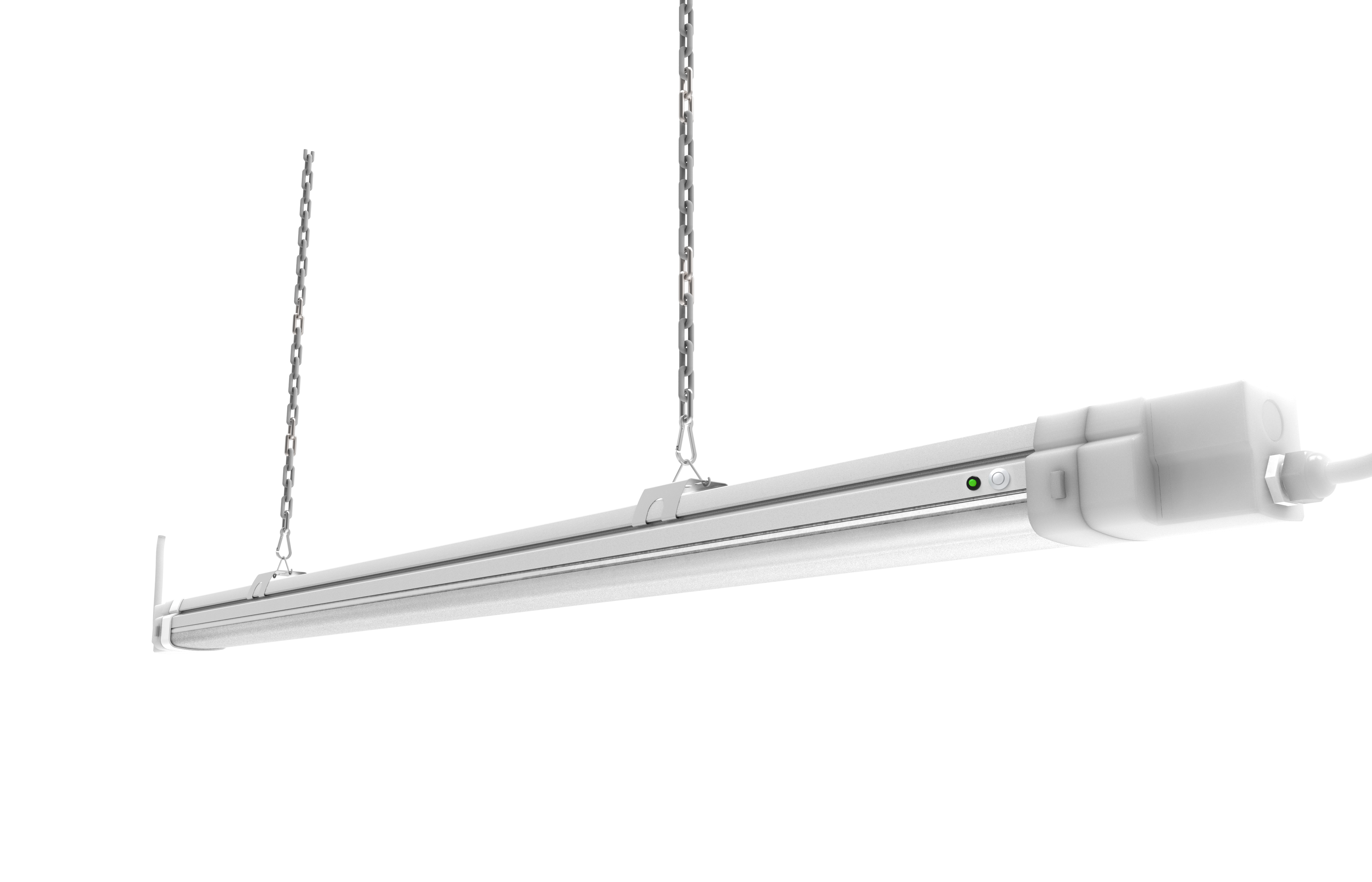

STAR Click Linear light
Lifetime
L80B10 - 50,000 hours
Efficiency
(System efficiency)
Protection class
Dust sealed & waterproof
The made-to-measure multi-talent
The STAR Click system is an ideal solution if there is no line light yet or if the existing line light needs to be completely replaced. Installation is tool-free and does not require any mounting rails. Suspension is only necessary every 3 meters. Thanks to its ingenious design, STAR Click complies with protection class IP65 throughout and is available with various beam angles. Its high light efficiency (up to 160lm/W) also ensures significant energy savings. All these features make this model suitable for a wide range of applications, such as warehouses, cold stores and demanding production facilities. STAR Click is also optionally available with emergency lighting or with a sensor.
» Continuous and seamless end-to-end connection (with or without blind cover)
» Continuous line through cable connection between two luminaires
» Individual mounting of luminaires through suspension
» Optional: emergency lighting, sensor
Special features
» Optionally with Emergency Pack for emergency lighting; Up to 3h emergency operation at 9W output
» Control with 0-10V as standard, optionally with DALI
» Tool-free and simple installation
» 3-phase cable routing for simple fixture separation, phase selection without tools
» Up to max. 50 fixtures per phase and 150 fixtures per line
» 7-strand through-wiring L1,L2,L3,N,PE,DIM+, DIM
» Glare-free, homogeneous light thanks to opal cover and 120° beam angle
» No trunking rail required

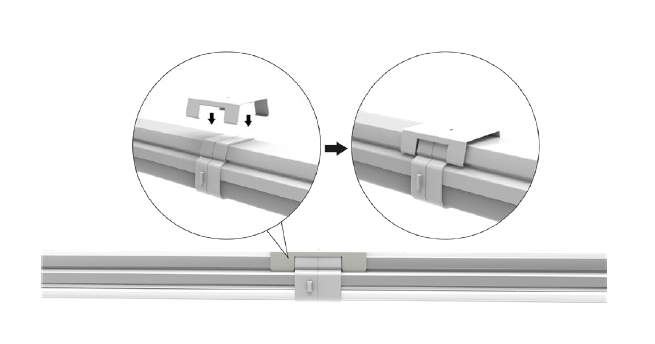

Simple and stable assembly of the STAR Click modules using brackets (no trunking rail required)

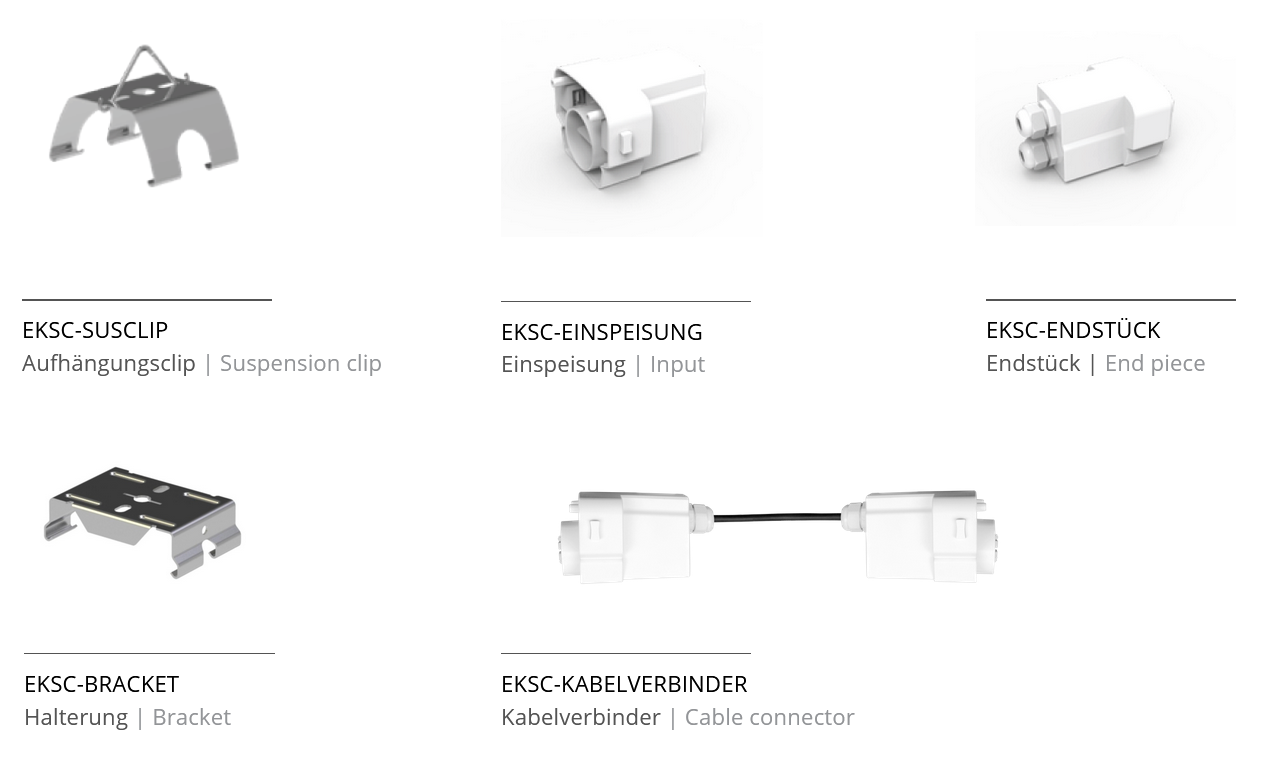

Accessories

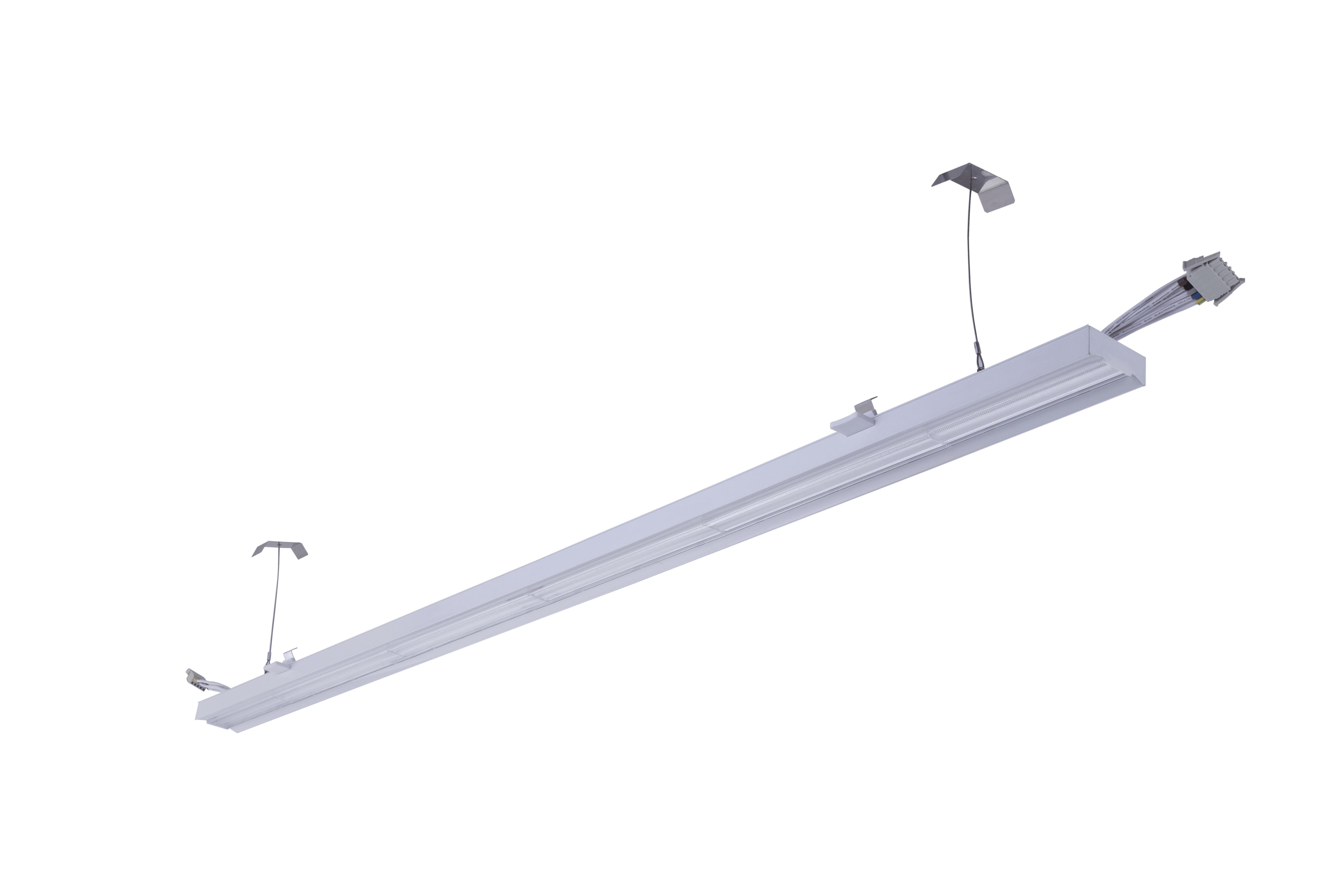

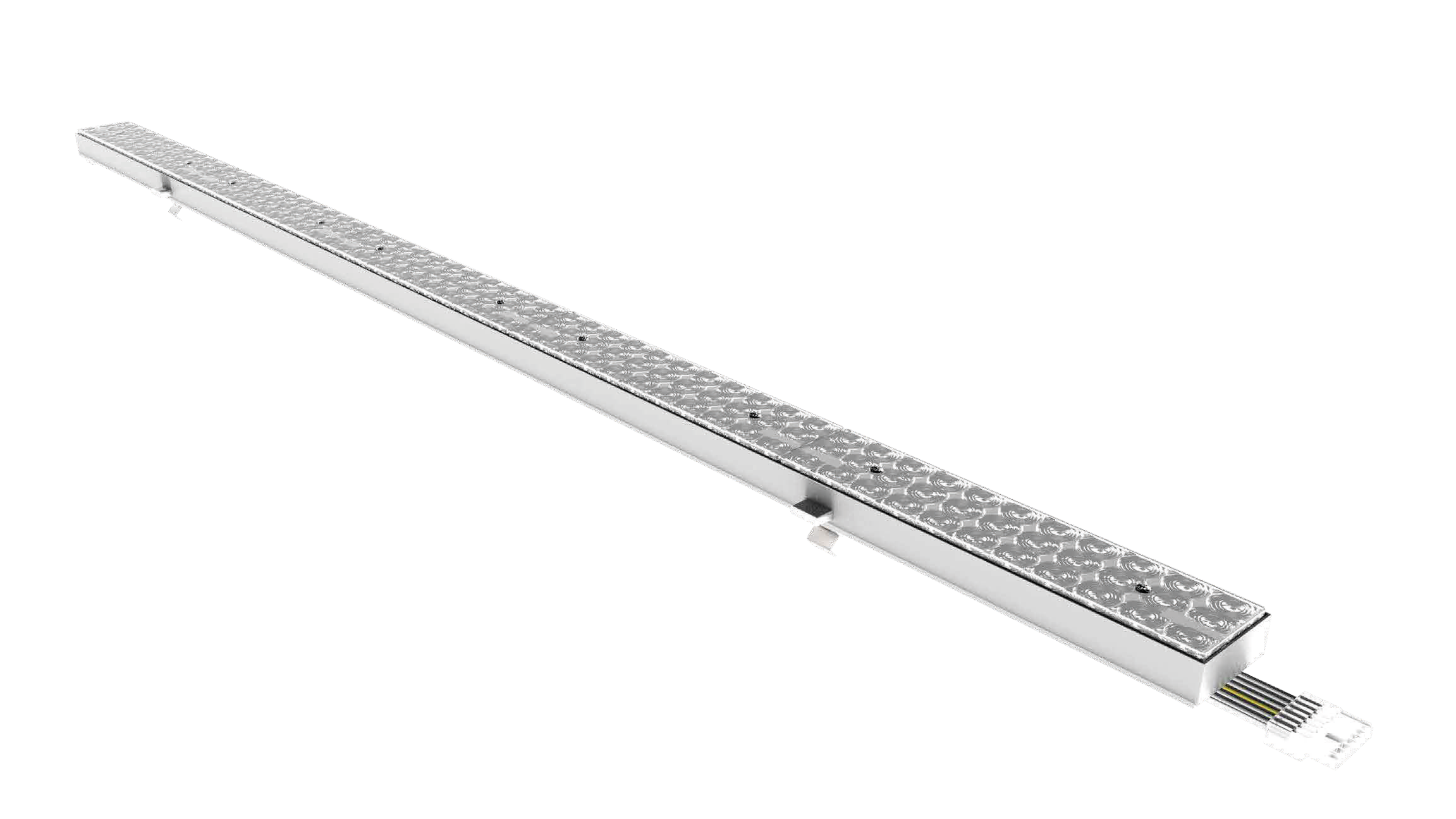

STAR Line Universal
Lifetime
L80B10 - 50,000 hours
Efficiency
(System efficiency)
Power
Adjustable
Retrofit module
The great advantage of the STAR Line universal line light is that existing trunking can generally continue to be used if it is in good condition. The high level of compatibility with standard trunking and the simple design of the luminaire make installation particularly easy. STAR Line Universal also impresses with a light efficiency of up to 160lm/W, enabling high energy savings. The STAR Line linear light also has a DIP switch that can be used to adjust the output (25W-75W). This model is also optionally available with dimming (1-10V or DALI) and provides up to 3 hours of emergency lighting in the emergency version.
Special features
» Existing mounting rails can continue to be used
» Compatibility with standard trunking rails
» Efficiency of 160lm/W
» Adjustable output 25W - 75W (dip switch)
» Emergency version
» 1-10V or DALI dimming
» Color temperature: 5,000K (opt. 3,000K and 4,000K)

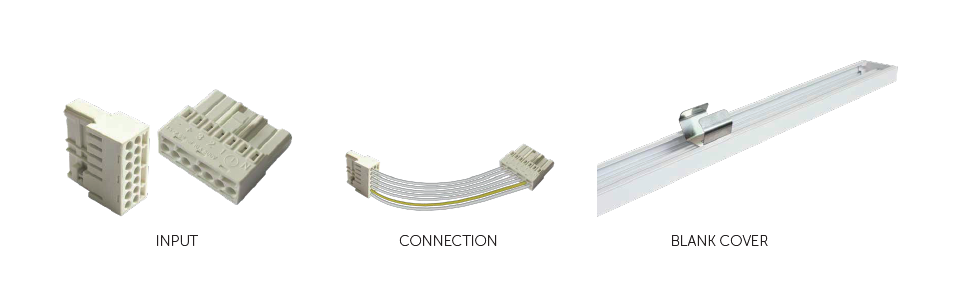

Accessories
